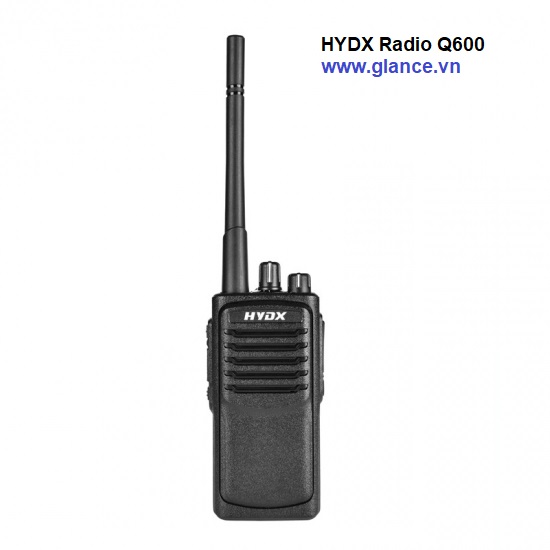

Máy bộ đàm HYDX Radio Q600
High Power Best Long Range Portable Two Way Radios
Product Description：
·The Q600 has a variety of housing options and strong endurance.It has high-quality sound and 16Ω speaker.Recommended places of use：hotel、restaurant、building、school，etc.
·High power two way radios with strong penetration;sound transmission can pass between buildings and keep sounds undistorted.
·2200mAh large capacity battery support over 12 hours of use and 150h standby time;sturdy body design can anti-fall and anti-friction for long use life.
·Each channel with secure call can prevent irrelevant signals;make sure you have a secure and secure call.
·VOX can realize hands-free operation by voice activation when you are busy;comfort and G shape headsets give you clear call in noisy environment.
·Whatever your needs;Q600 two way radio provides a simple;reliable; cost-effective communication solution to help work crews connect; coordinate and collaborate to get the job done right.
Main Functions
1.136-174MHz/400-470MHz
2.High/Low Power Switchable 10W/5W
3.High Battery Capacity 2200mAh
4.Monitor
5.Tail Elimination
6.VOX
7.Power Save
8.Channel Scanning
Technical Specification
| GENERAL |
| Frequency Range | UHF:400-470MHz VHF:136-174MHz |
| RF Output Power | H:10W±1W L:5W±0.5W |
| Channels | 16 |
| Channel Spacing | Wide:25KHz Narrow:12.5KHz |
| CTCSS/DCS | 50 CTCSS / 105 DCS |
| Antenna Impedence | 50Ω |
| Operating Temperature | -20℃+60℃ |
| Operating Voltage | DC 7.4V |
| Battery Type | 2200mAh |
| Dimension(Excluding antenna) | 132(H)×62(W)×35(D)mm |
| Weight(Battery,Antenna Including) | About 280g |
| TRANSMITTER |
| Output Power | H:12W±1W L:5W±0.5W |
| Frequency Stability | ±1.5×10-6ppm |
| Modulation Mode | F3E |
| Modulation Sensitivity | 12±5 mV |
| Adjacent Channel Power | ≥65 dB |
| Modulation Distortion | ≤1% |
| Transmit Spurious Emission | ≥62 dB |
| RECEIVER |
| Reference Sensitivity | ≤-122 dBm |
| Adjacent Channel Selectivity | ≥55 dB |
| Inter-modulation response immunity | ≥55 dB |
| Block | ≥84 dB |
| Rated Output Power | ≤1000mW @16Ω |
| Rated Audio Distortion | ≤5% |
