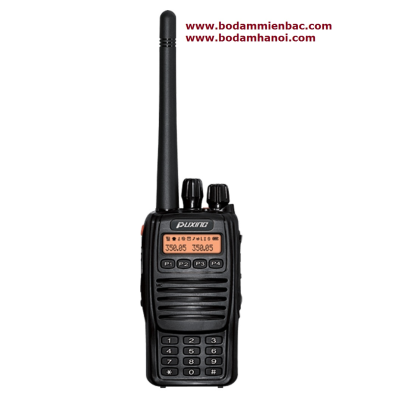

Bộ đàm cầm tay Puxing PX-300D
|
dPMR radio PX-300D |
|
Features and functions |
|
Size |
131×63.5×39.5MM |
|
Frequency Range |
136-174/400-470MHz |
|
Channel capacity |
199CH |
|
Output Power |
4W |
|
battery capacity |
1800mAh li-ion battery |
|
higher promoted spectrum utilization |
6.25khz FDMA system |
|
digital codec=Vocoder Type |
AMBE+2C |
|
4FSK digital modulation |
4KCOFIE |
|
Feature1 |
Digital-analog compatible:analog-digital transition smoothly |
|
Feature2 |
Digital system/noise rejection/voice better/ digital single call/group call |
|
Feature3 |
secondary development interface and software upgrade |
|
Feature4 |
digital encryption; |
|
Digital advantage than analog |
much clearer and encription voice |
|
Digital encryption key length |
32bits |
|
Bandwidth |
Narrow: 6.25KHz/ Wide:12.5KHz |
|
Antenna impedance |
50Ω |
|
Operating voltage |
7.4V DC |
|
Operating temperature |
-20°C +55°C |
|
Weight |
330G |
|
Transmitter |
|
Frequency Stability |
±3ppm |
|
Max Frequency Deviation |
±5KHZ |
|
Adjacent Channel Power |
-70dB(25KHZ spacing) |
|
audio frequency respone |
+3db--5dB/octave(300hz-3000hz) |
|
Audio Distortion |
5%(1khz AT60% deviation) |
|
FM hum and noise(EIA) |
40dB |
|
Receiver |
|
RF Sensitivity |
≤-120dBm AT 12 SINAD(analog mode) 3%BER<0.25μV(digital mode) |
|
squelch sensitivity |
0.25μV(threshold) |
|
Adjacent Channel Selectivity |
70dB(25KHz spacing) |
|
Spurious response |
70dB |
|
intermodulation |
70dB(25KHz spacing) |
|
FM hum and noise |
45dB |
|
audio output power |
500mw(5%distortion,8Ωload) |
|
OEM/ODM |
support imprint your logo on products |
|
Warranty |
1year for radio,6monthes for battery |
|
shipment |
FedEx/DHL/UPS 3-5days EMS/TNT 5-8days |
